Integrated full-chain production line—from bare aluminum and color-coated aluminum coils to aluminum-plastic composites, protective films, and molecular films—enabling exceptional cost efficiency and reliable delivery schedules.

Alumeitu A2 Fireproof panel

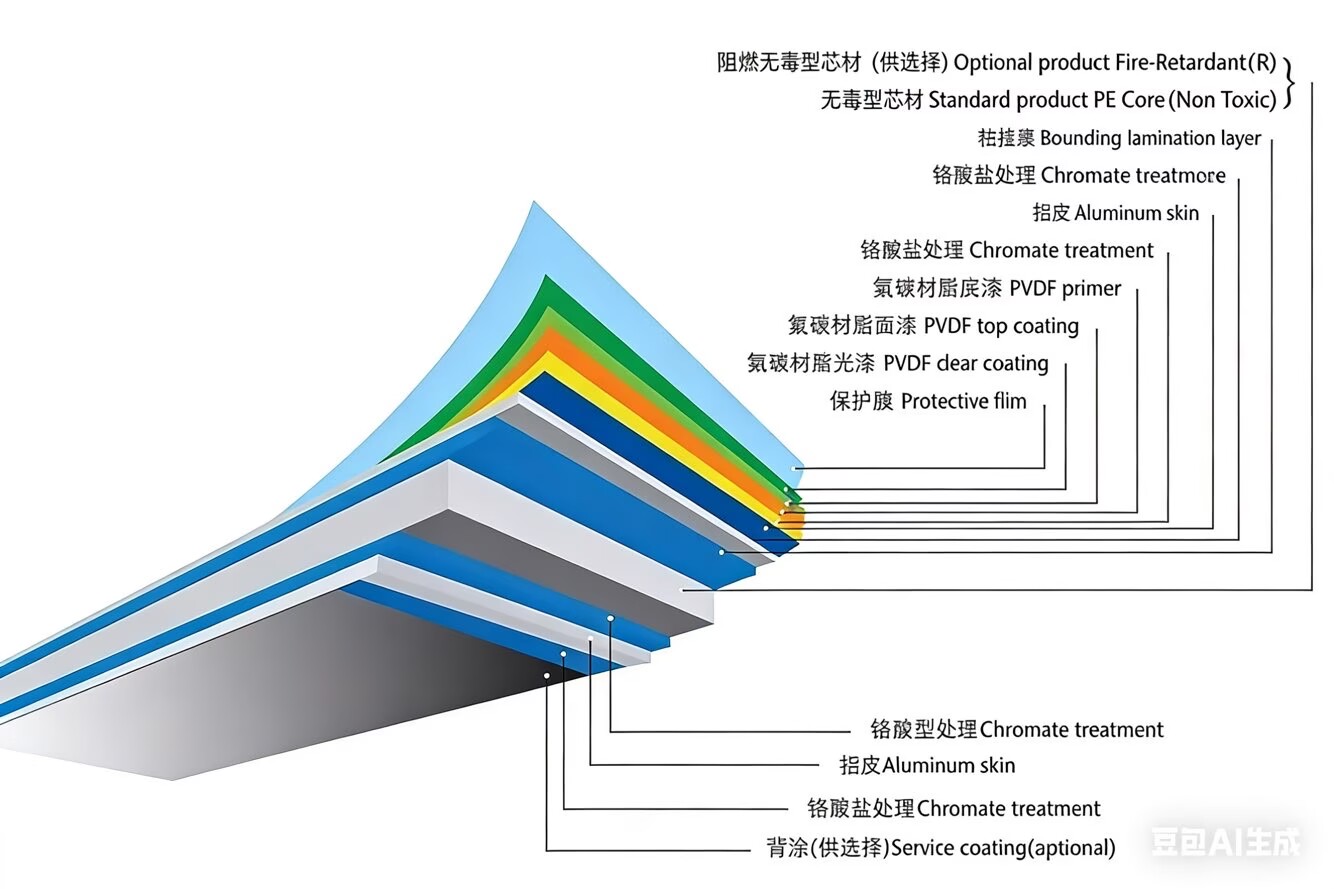

Structure diagram of A2 Fireproof panel

Test of A2 Fireproof panel

A2 fireproof panel are suitable for building curtain walls with high fire performance requirements.

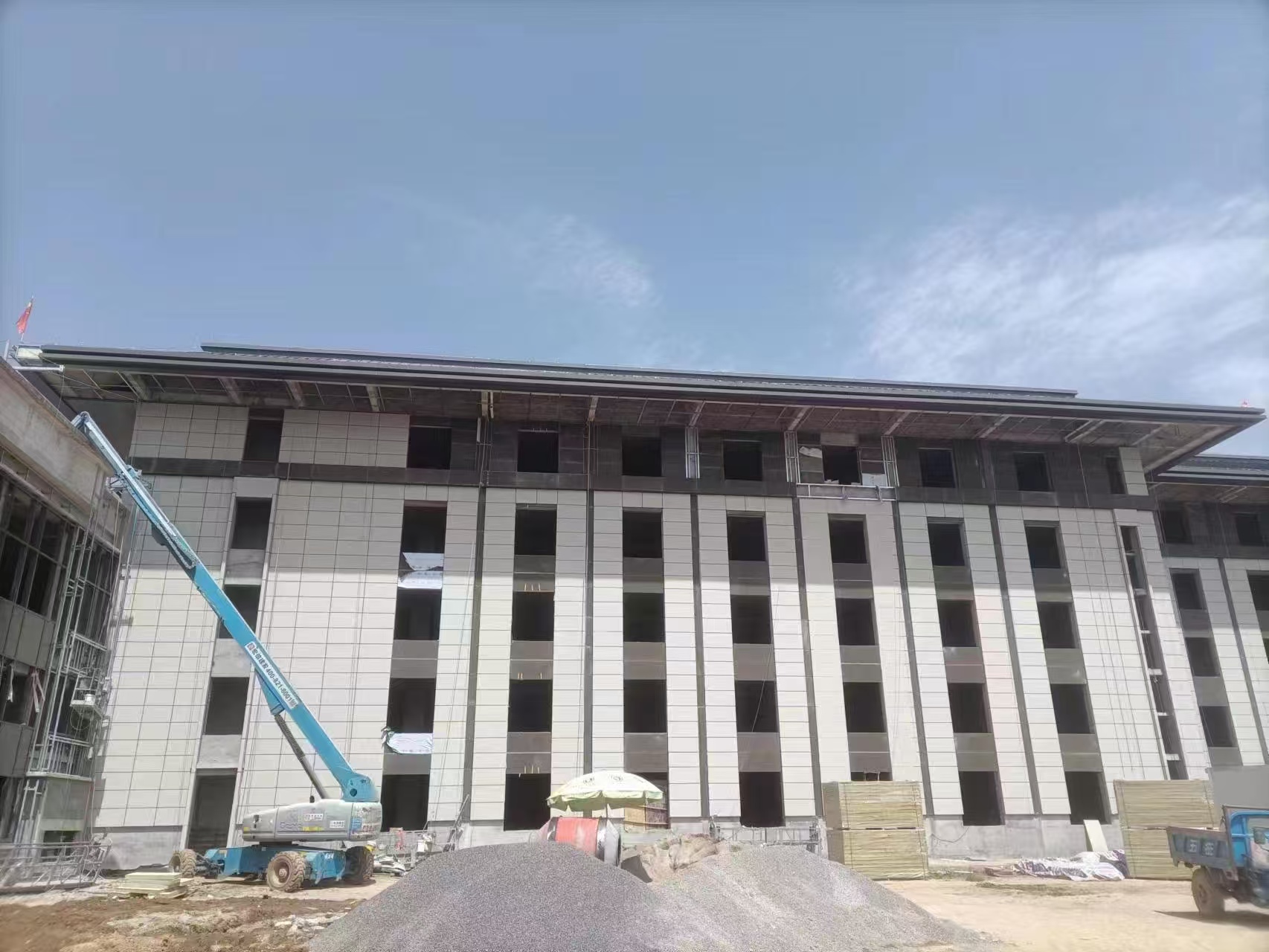

Schools, office buildings, supermarkets

Features of Alumeitu A2 fireproof panel

Alumeitu A2 fireproof panels are made of coated aluminum sheets (generally PVDF coating) combined with natural inorganic materials through a high-polymer film heating process. They are suitable for building curtain walls with high fire resistance requirements.

Key features of Alumeitu A2 fireproof panel:

1) Non-combustibility: Complies with the Chinese standard GB8624-2012, achieving Class A2, S1, d0, t0.

2) Eco-friendliness: The core consists of natural inorganic materials—non-toxic, non-combustible, and offering sound insulation and thermal resistance—fully meeting green and environmentally friendly requirements.

3) Excellent weather resistance: The PVDF coating, based on Hylar 5000® or Kynar 500® resin, provides superior resistance to corrosion, staining, and weathering, maintaining its vibrant appearance even under intense sunlight or severe frost.

4) Easy to fabricate and install.

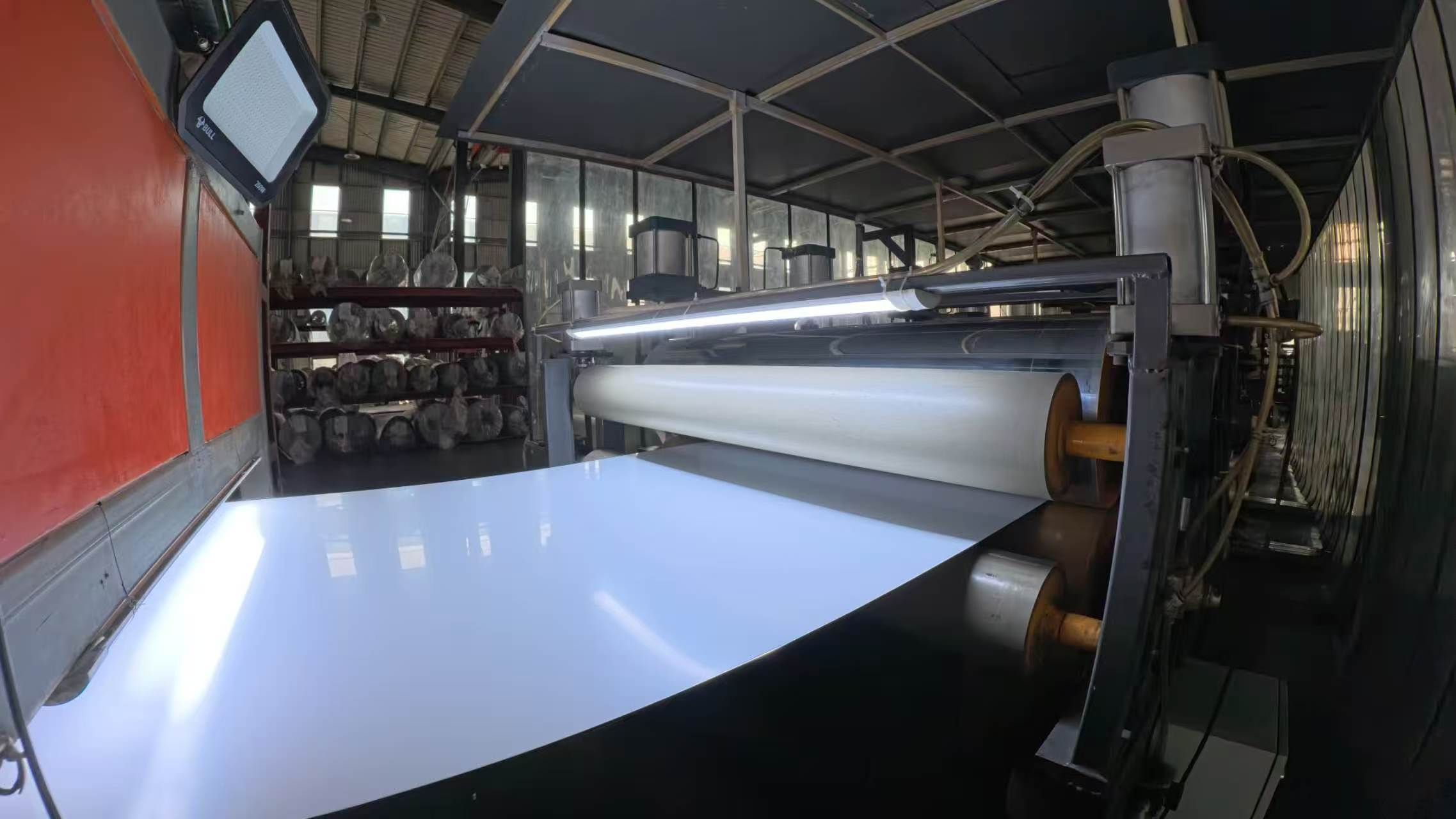

A2 Fireproof panel production line

Fully controllable throughout the entire process (360° control)

Quality standard of Alumeitu A2 fireproof panel

Flame retardancy complies with the GB8624-2012 standard, Class A (A2-S1).
The finished panel surface is smooth and free from surface defects such as dents, bumps, blisters, wavy edges, or scratches.
